10 in. 3 HP 220-Volt Cabinet Table Saw with Long Rails and Ri-Volting Knife
Regular price $2,070.00/
Shipping calculated at checkout.
We couldn't offer the gold standard in left tilting Cabinet Table Saws without offering an extended rip capacity version too. Just like the G0690 Table Saw in every other way, this saw also features a 50 in. rip capacity – more than enough to rip to the center of a standard sheet of plywood. The extension table features adjustable legs, square steel tubing frame and dimensionally stable top. True riving knife moves up, down and tilts with blade. Short riving knife is included. Tall splitter/riving knife that the blade guard mounts to is included as well. If you do any amount of cabinet or plywood work, this saw is the answer to your dreams. Made in an ISO 9001 Factory CSA certified meeting CSA C22.2 #71.2-08 and UL 987 standards.
Features
- California residents
- Powder coated paint
- Quick release riving knife
- Hinged motor cover
- 4 in. dust port

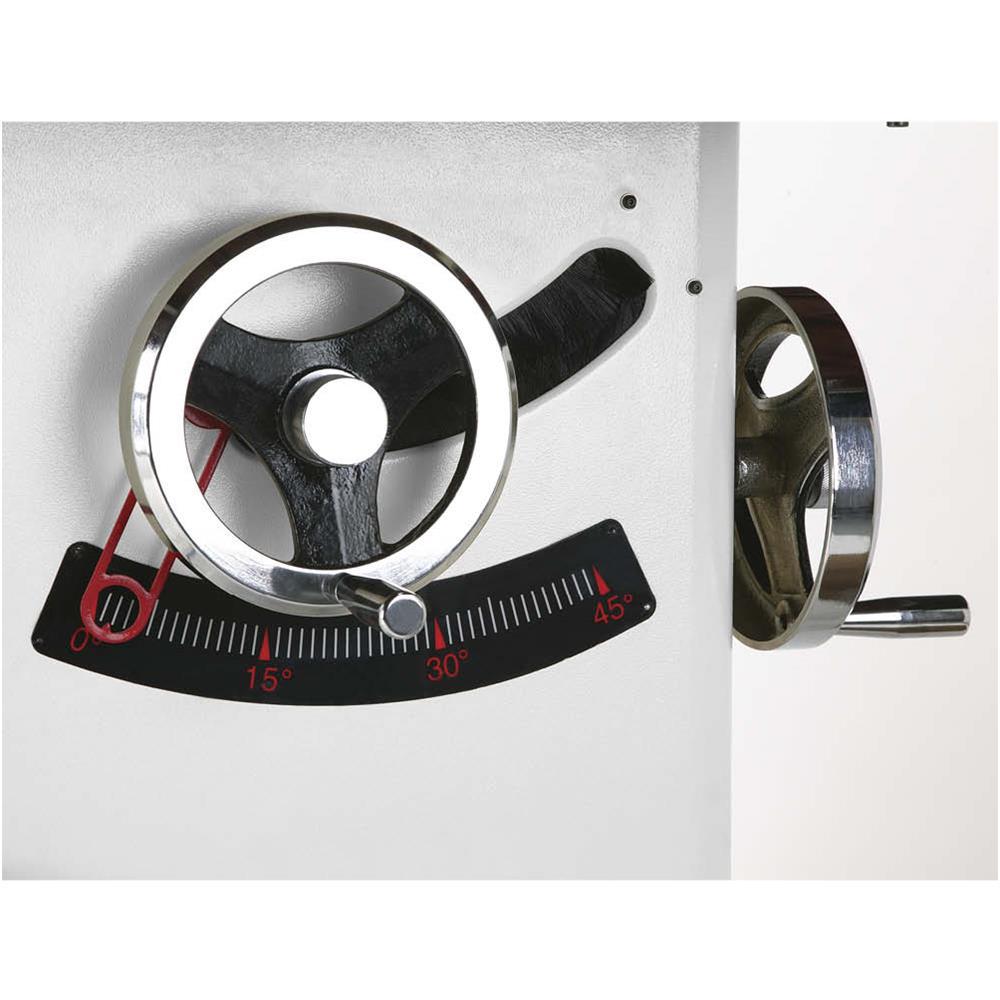

- Heavy-duty handwheels

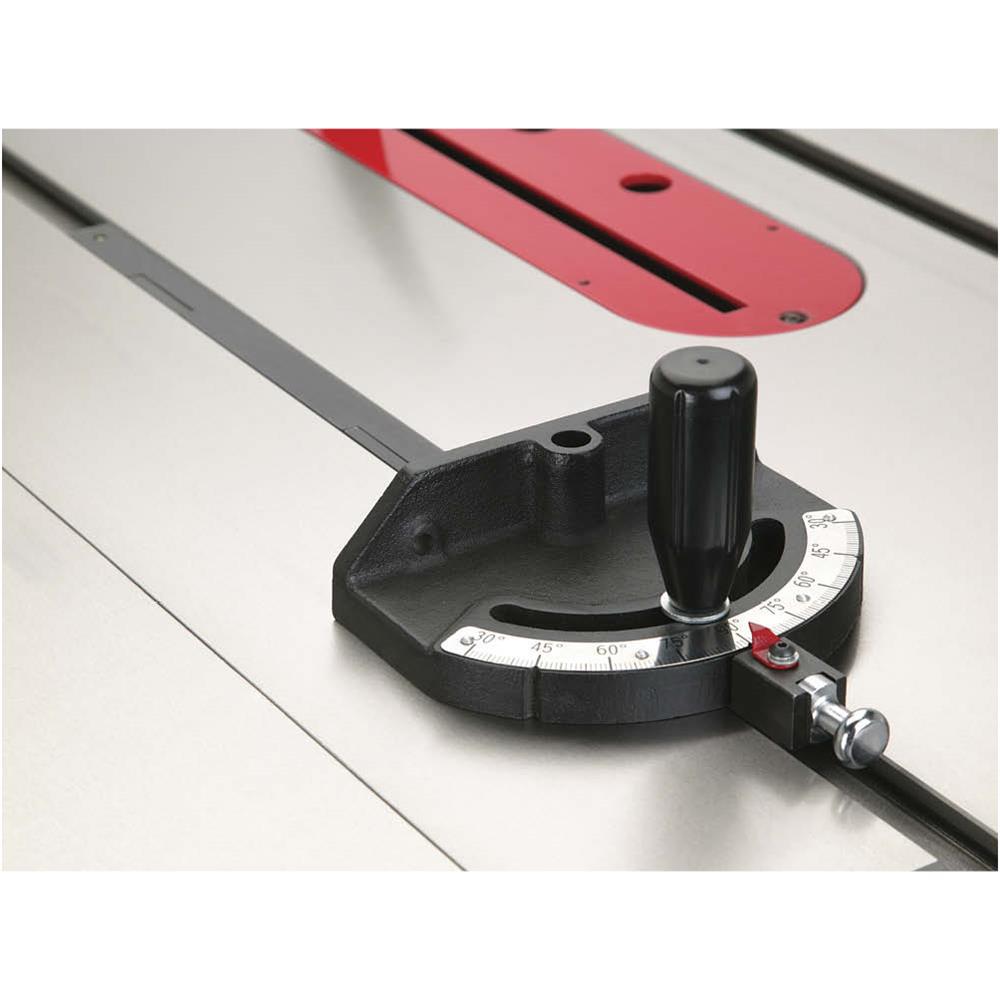

- Heavy-duty T-slot miter gauge
- Triple V-belts
- Precision-ground cast-iron table
- Quick-release blade guard and spreader
- Heavy-duty cast-iron trunnions
- Nylon runners inside fence head assembly
- Camlock T-shaped fence with HDPE face
- Easy glide fence system
- Knurled knobs for adjusting fence
- Standard and dado table inserts
- Extension table and long rails enable 50 in. rip capacity
- Sturdy steel legs with adjustable feet
- Included 10 in. x 40 in. T carbide-tipped blade
Features
| Item Weight | 546 |
| Maximum Speed (rpm) | 4300 |
| Table Tilt Right Max (degrees) | 0 |
| Blade Diameter (in.) | 10 |
| Table Tilt Left Max (degrees) | 45 |
| Rip Capacity - Left | 12 |
| Horsepower (hp) | 3 |
| Cordless/ Corded | Corded |
| PT Horsepower (Hp) | 3 |
| Bench & Stationary Tool Type | Table Saw |
| Blade Location | Centered |
| Color Family | Multi-Colored |
| Rip Capacity - Right | 49 |
| Condition | New |
| Cord Length (ft.) | 6 |
| Depth Control | Adjustable |
| Portability | Stationary |
| Cuts Through | Wood |
| Power Tool Features | Blade Guard System,Stand Included |
| Construction Material | Cast Iron |
| Returnable | 180-Day |
| Dust Collection Method | 4 in. Dust Port |
| Included Accessories | Blade Guard System,Blades |
| Maximum Cut Depth @ 45 Deg. | 2.19 |
| Tools Product Type | Power Tool |
| Blade Speed | 4300 |
| Amperage (amps) | 12.8 A |
| Product Weight (lb.) | 546 |
| Product Height (in.) | 40 |
| Work Table Surface | 74.75 in. x 74.75 in. |
| Product Width (in.) | 41 |
| Table Length (in.) | 74.75 |
| Product Depth (in.) | 41 |
| Maximum Cut Depth @ 90 Deg. | 3.13 |
| Table Width (in.) | 74.75 |
| Manufacturer Warranty | 1 Year |
