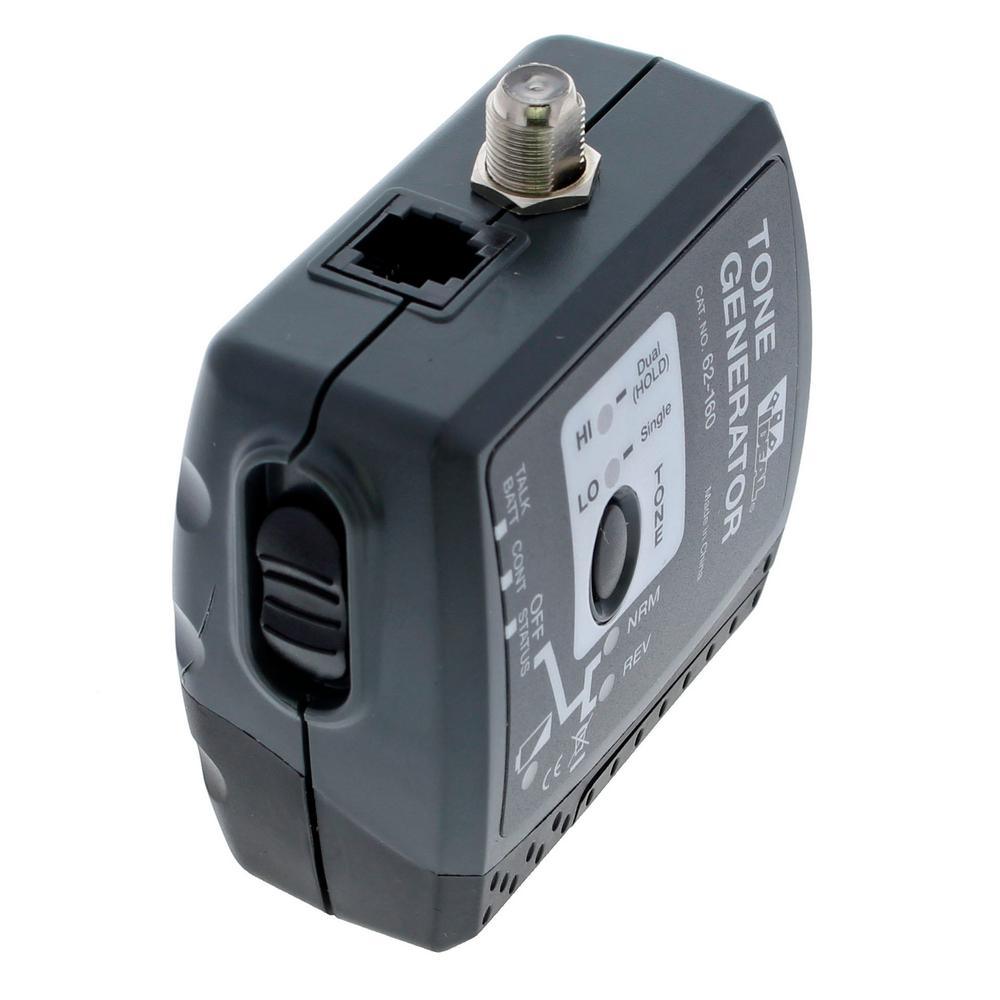

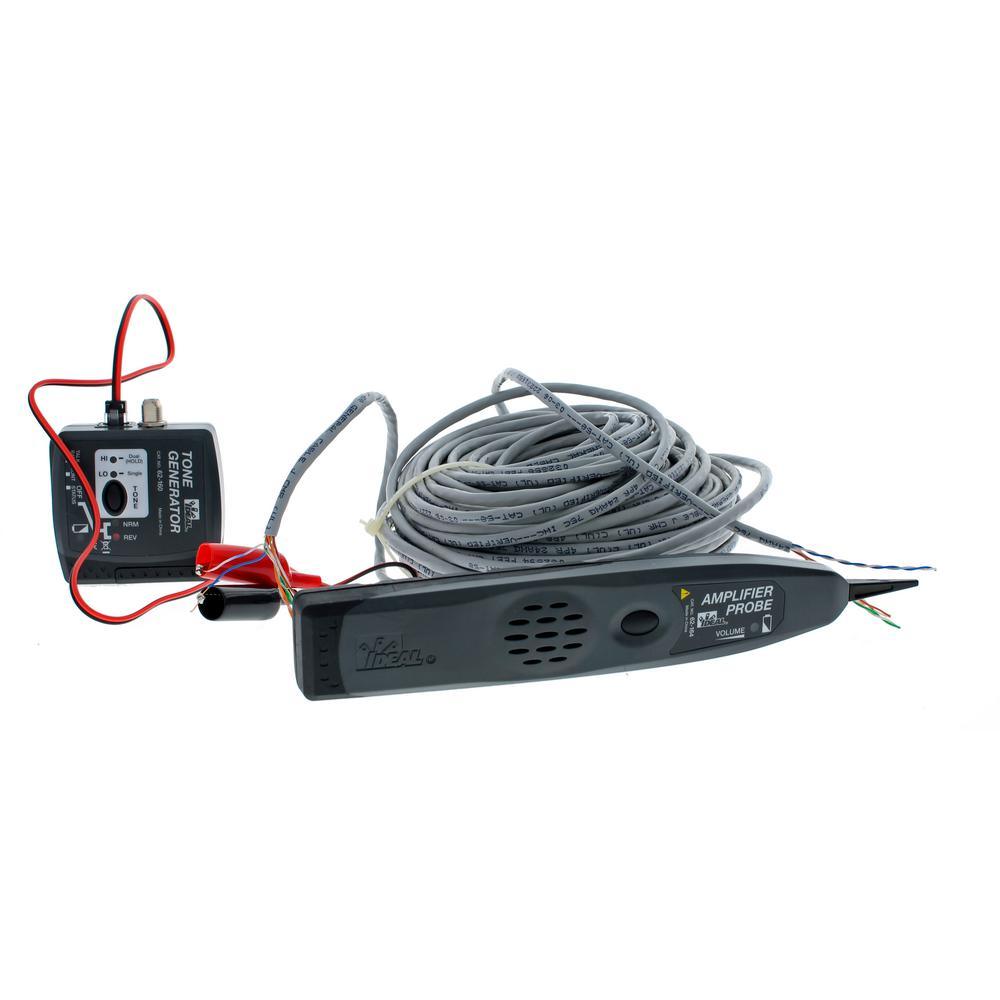

The 62-160 Pro Tone Generator is used to send an analog tone signal over copper cables to aid in identifying the location and identification of the cable. The signal is picked-up or amplified, by using the 62-164 amplifier probe (sold separately). The tone generator has both RJ-11/12 and Coax F-female interfaces to attach terminated cables directly to the unit. An alligator clip assembly is included to send tone signals on any de-energized copper cables including electrical cables, speaker wires, alarm cables and more.
California residents
3-different user selectable tone patterns are emitted from the generator
Auto-off feature engages after 3-hours on non-use to conserve battery life
Generator has a setting to provide power for talk sets
Continuity test setting also included for positively identifying cables and verifying continuity
Analog tone generator for de-energized copper cables

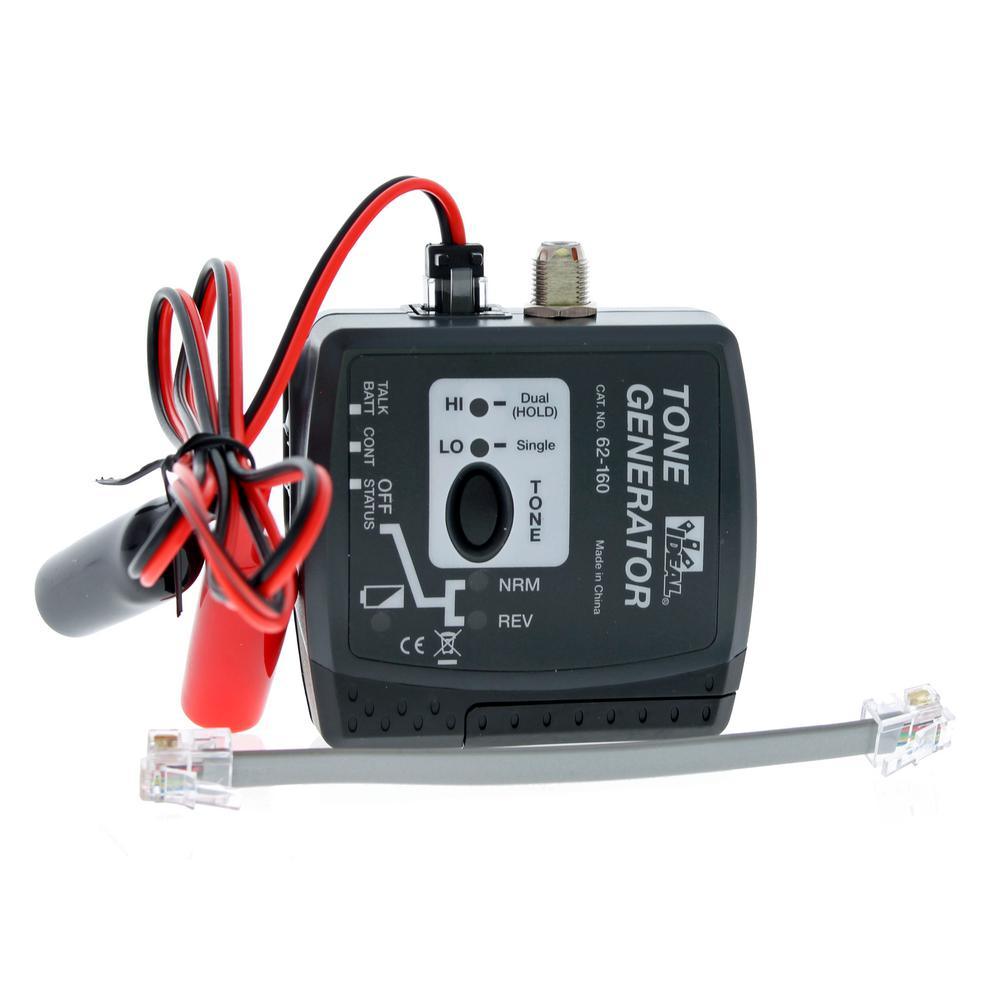

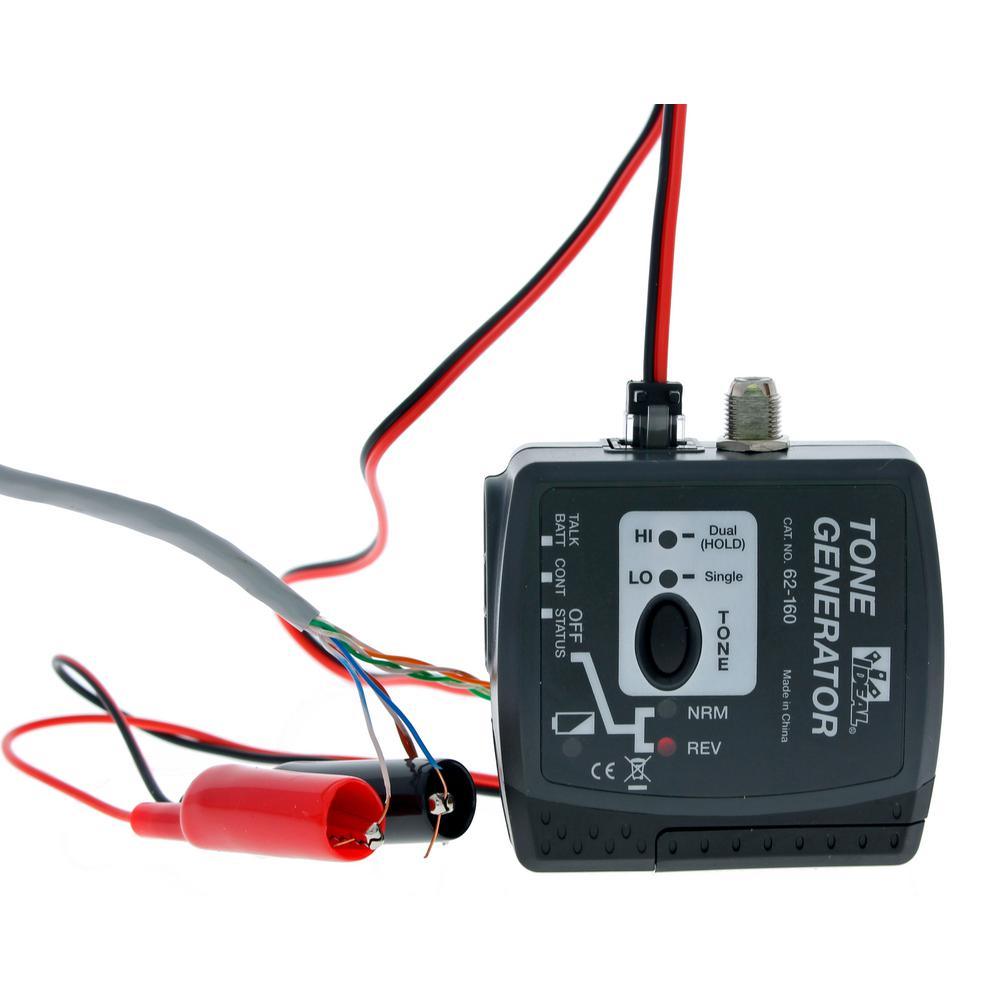

Alligator clips for testing other de-energized cables
Tester uses 9-Volt battery included
Features
Item Weight
.49
Battery Power Type
Alkaline
Maximum data transfer rate/speed (Mbps)
0
Number of Batteries Required
1
Application tested
Multimedia
Features
No Additional Features
Returnable
180-Day
Electronics Included Components
Batteries
Product Depth (in.)
1.0 in
Product Width (in.)
2.88 in
Product Height (in.)
3.0 in
Manufacturer Warranty
LIMITED WARRANTY - This product is guaranteed to be free from defects in material and workmanship for a period of one (1) year from date of purchase.
