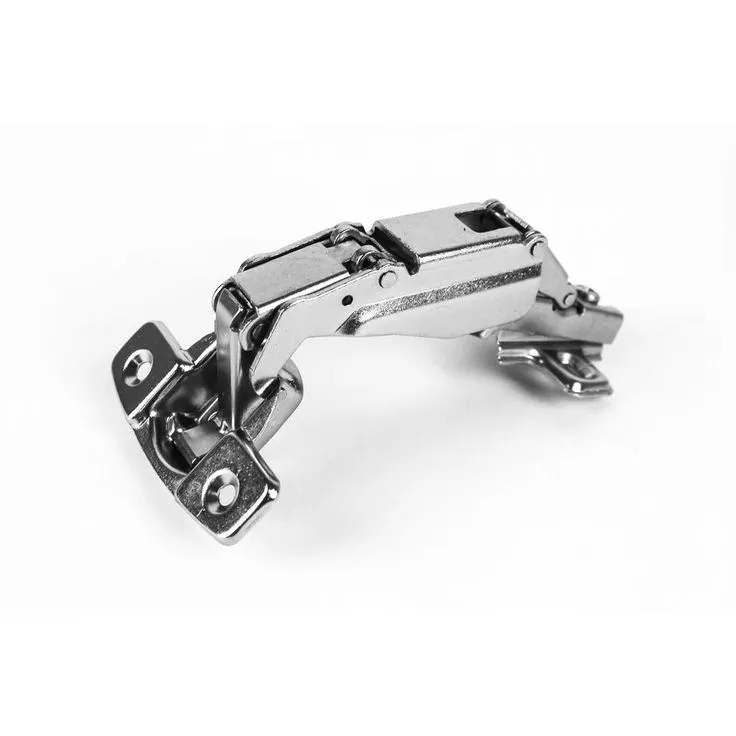

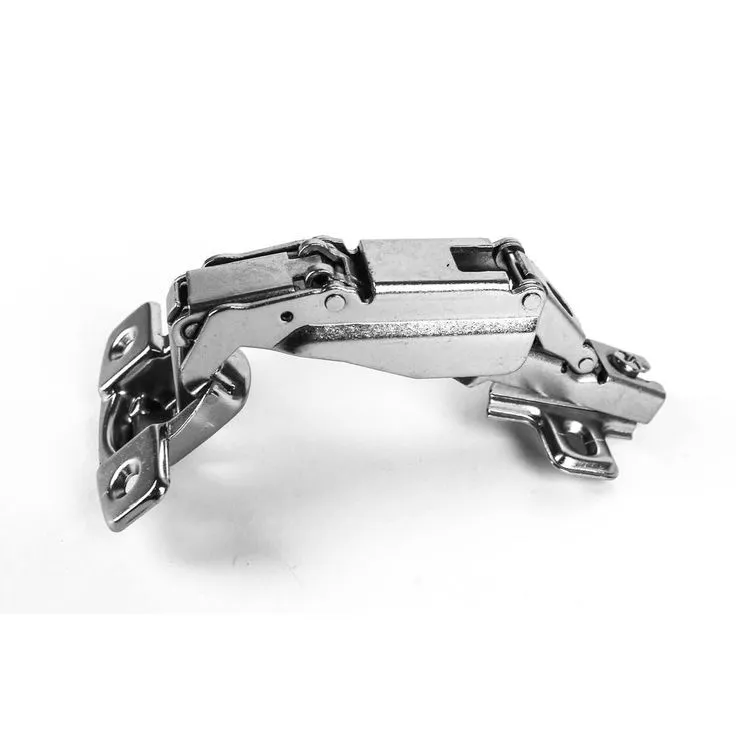

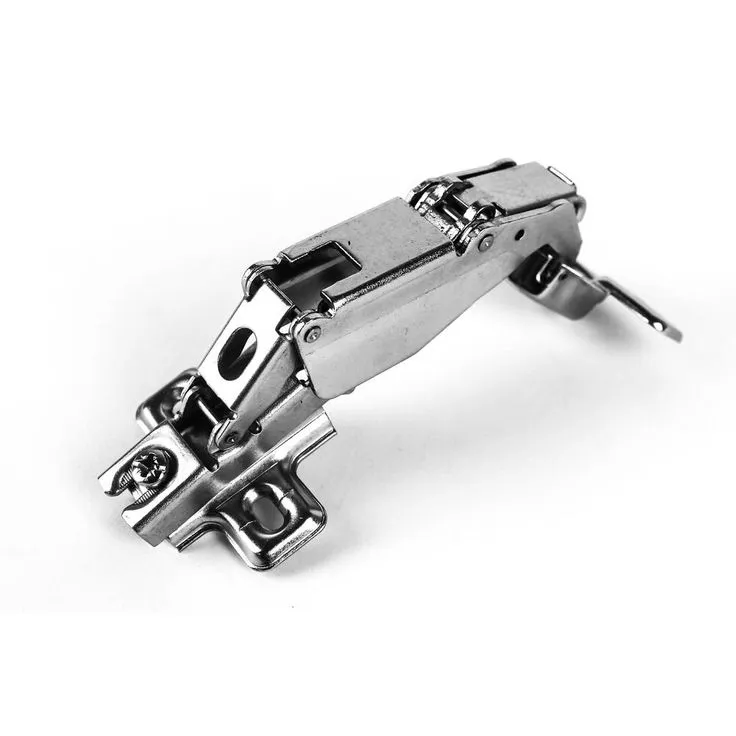

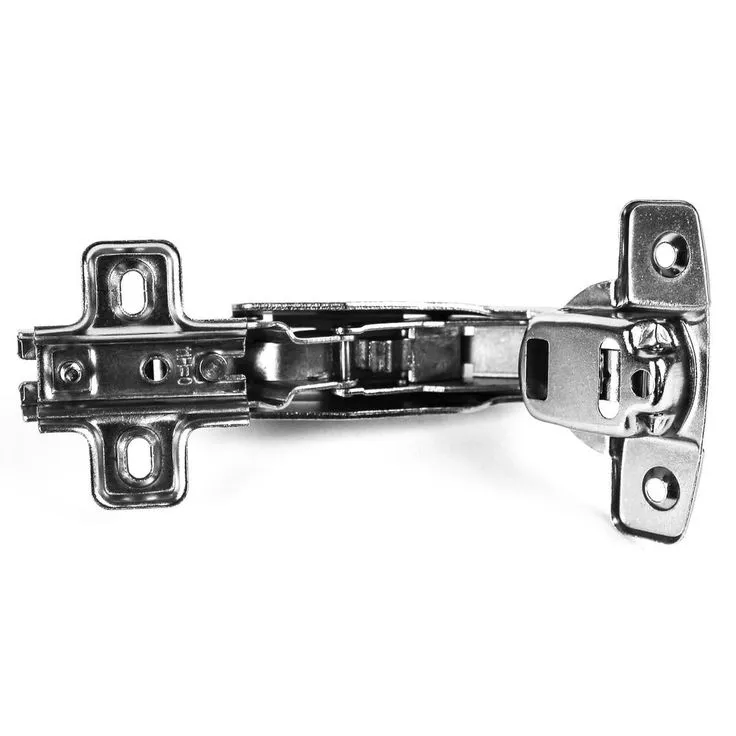

These hinges are a type of hinge hat has a spring built into it so when you start to close a cabinet door, the spring, at some point, takes over and pulls the cabinet door closed with a tap. These hinges used everywhere, from kitchen to office in frameless cabinets. Our hinges are for frameless cabinets.
You can use this hinge to replace just about any brand of current or obsolete standard European hinge, when replacing existing hinges, always replace both hinges and both mounting plates on the door, mixing different brands and types of European hinges can cause door binding problems
Opening angle: 165°, overlay: full overlay, cup diameter: 1-2/5 in. (35 mm), cup depth: 1/2 in. (12.5 mm)
Suitable door thickness: 3/5 in. to 1 in. (16 mm to 24 mm), screw hole center to center: 1-4/5 in. (45 mm), material: cold rolled-steel, finish: nickel plated, closing type: self close
Adjustment: 3-way adjustable: side (minus 3 mm to plus 1 mm), depth (plus 3 mm to minus 1 mm) and height (plus 2 mm to minus 2 mm), cabinet type: frameless, bore distance: 1/8 in. to 1/3 in. (3 mm to 8 mm)
