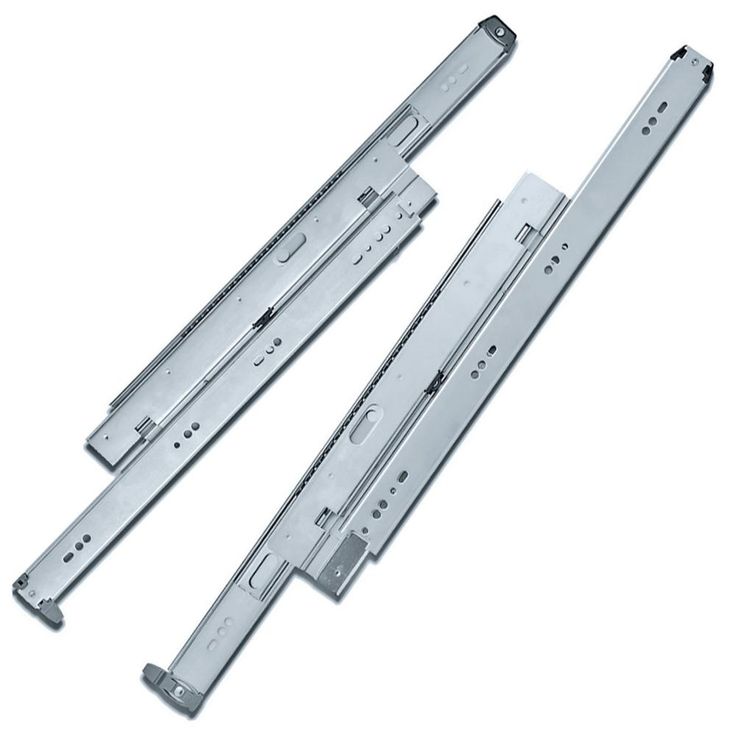

16 in. Zinc Side Mount Progressive Heavy-Duty Drawer Slides

$22.15

/
Shipping calculated at checkout.
The 16 in. Progressive Heavy-Duty Drawer Slides would be a great application on file drawers or other office furniture. The heavy-duty slides have a 150 lbs. weight capacity and feature 1 in. of over travel. They also feature an attached release clip with quick disconnect rails which make for easy drawer removal.
  • 16 in. L
  • Side mount
  • 17-5/8 in. travel length
  • Dimensions: 4 in. H x 16 in. L x 0.5 in. W
  • 150 lbs. weight capacity
  • Electro zinc finish
  • Screw mounting system 32 mm compatible
  • Attached release clip with quick disconnect rails
  • Progressive movement
  • Handed slide member
  • For applications such as file drawers, office furniture, etc.
  • Side spacing: 1/2 in. (plus 1/32 in. to 0 in.), 12.7 mm (plus 0.38 mm to 0 mm)


Features
Item Weight 5.06
Slide System Ball Bearing
Weight load per set (lb.) 150
Material Steel
Finish Family Zinc
Mount Type Side Mount
Returnable 180-Day
Package Quantity 2
Builders Hardware Product Type Drawer Slides
Features Heavy Duty
Drawer Slide Type Side Mount
Product Height (in.) 4 in
Product Width (in.) .5 in
Maximum Expandable Length (in.) 17.63
Slide Length (In.) 16
Manufacturer Warranty NA
